Weld-On Lifting Attachments for Industrial Equipment & Steel Structures

RUBY offers weld-on D rings, lifting lugs and hooks for lifting machinery, fabricated steel structures and heavy components. The range covers different attachment designs and working load limits (WLL) for industrial lifting applications.

Select a suitable model based on the required load rating, connection type, lifting direction and mounting arrangement.

Weld-on Lifting D Ring
The Grade 80 Weld-on Lifting D Ring is a weldable lifting point designed to provide a fixed attachment location on suitable steel structures and equipment. Its forged D-ring and flat base plate allow the assembly to be welded onto a...
view more
Grade 80 Lifting Point Weld On D Ring
The Grade 80 Lifting Point Weld On D Ring is a weldable lifting attachment for installing a dedicated lifting point on flat steel surfaces and beam structures. The RP008 series offers rated capacities from 1.12 to 15 tonnes, with a...
view more
Weld-on Hook
The Weld-on Hook is a forged alloy steel hook designed for permanent welding onto equipment and steel structures. The Ruby RP007 series combines a heavy-duty steel safety latch with working load limits from 1 to 10 tonnes for...
view more

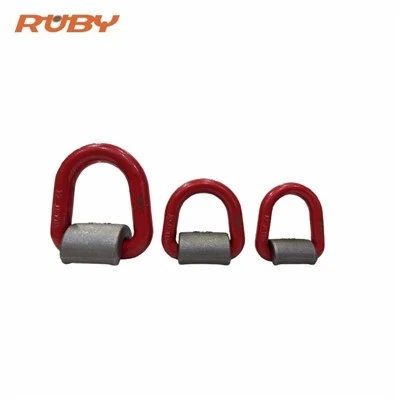

Weldable Lifting Lug
The G80 Weldable Lifting Lug is a forged alloy steel lifting and load-attachment point designed to be permanently welded onto steel structures, equipment or loads. The RP009 series combines a 180° pivoting D-ring with WLLs from 1 to 8...
view more
Weld On D Rings
The G80 Weld On D Ring is a forged alloy steel lifting point welded directly onto steel structures to provide a permanent load-bearing connection for lifting operations. The RP008 series is available in seven WLL ratings from 1.12 to 15...
view more

Product Types

Weld-On D Rings

Provide a ring-shaped attachment point for connecting compatible slings and rigging equipment to a welded structure.

Weldable Lifting Lugs

Provide a designated lifting point for handling machinery, fabricated assemblies and heavy components. Selection depends on lug design, rated load and lifting direction.

Weld-On Hooks

Provide a hook-shaped connection for compatible loads or rigging components where direct hook engagement is required.

Product Comparison

Comparison Item	Weld-On D Ring	Weldable Lifting Lug	Weld-On Hook
Design	Ring-shaped attachment	Plate-type lifting point	Hook-shaped attachment
Connection Method	Ring connection	Hole or designated connection point	Direct hook engagement
Main Selection Factor	Ring opening and connector clearance	Hole geometry and loading direction	Hook opening and engagement clearance
Typical Use	Sling connection to welded structures	Lifting fabricated assemblies and machinery	Direct engagement with compatible loads or rigging components

WLL and dimensional specifications vary by model. Refer to the relevant product drawing and rated capacity for final selection.

Applications

Machinery and Equipment Handling

Lifting points for handling machine frames, large components and equipment during installation, relocation and maintenance.

Steel Fabrication and Structural Assembly

Weld-on attachments for handling fabricated steel sections, structural assemblies and heavy components during production and installation.

Industrial Lifting Operations

D rings, lifting lugs and hooks for lifting arrangements where the attachment design, rated capacity and rigging connection match the application.

New Installations and Replacement

New Installations

Provide the required WLL, lifting direction, attachment type, mounting location and supporting material. A drawing showing the mounting arrangement helps assess product suitability.

Replacement Projects

Provide the existing product code, dimensions or clear photos. For an unknown model, the existing mounting arrangement and available technical drawings can help identify a suitable replacement for review.

Welding and Installation Requirements

Base Material:

Confirm that the supporting material is suitable for the intended load and welding process.

Welding Procedure:

Follow the approved drawings and applicable welding requirements.

Completed Assembly:

Assess the attachment, weld and supporting structure as one load-bearing assembly.

Customization Options

Customizable Item	Requirements or Options
Product Type	Weld-on D ring, lifting lug or hook
Dimensions	Ring diameter, lug thickness, hole size, hook opening and overall dimensions
Mounting Design	Mounting configuration and technical drawing
Material Grade	Specified grade, subject to product design and availability
Surface Finish	Available finish options for the selected model
Product Marking	Product code, WLL, logo or agreed identification
Packaging	Requirements based on product size and shipping method

Customization is subject to the selected model and manufacturing feasibility. Provide a technical drawing and required modifications for review.

Inspection and Documents

Inspection and documentation requirements can be specified in the purchase order.

Material Certificate: Material identification and reported properties, where available.

Dimensional Inspection: Checked dimensions against the applicable drawing or specification.

Proof Load Test Report: Proof-load results where testing is required and performed.

Magnetic Particle Inspection (MPI): Inspection results where MPI is applicable and performed.

Third-Party Inspection: Independent inspection when agreed for the order.

Confirm the required inspection methods and reports before ordering. Availability depends on the product model and agreed inspection scope

Supply Capacity and Lead Time

MOQ:

1 piece for sample orders; bulk orders accepted.

Lead Time:

7–15 working days for standard models; 20–30 working days for customized orders.

Production Supply:

Weld-on D rings, lifting lugs and hooks available for mixed-model orders.

Packaging:

Cartons or steel pallets, depending on product size and order quantity.

Shipping:

Sea freight, air freight and express delivery available.

Export Documents:

Commercial invoice, packing list and certificate of origin upon request.

What We Need for a Quotation

Standard Product Order:

Model or product type + quantity + delivery destination.

New Installation:

Product type + technical drawing or mounting dimensions + application details.

Replacement Order:

Existing model or product code + clear photos or product drawing + quantity.

Custom Order:

Technical drawing + requested modifications + quantity.

If the model is unknown, send available photos or drawings for initial product identification.

FAQ

Q: Are weld-on lifting lugs suitable for permanent installation on machinery?

A: Yes. Weld-on lifting lugs can serve as permanent lifting points on machinery and fabricated structures when the attachment, supporting structure and welded joint are designed for the intended lifting loads. Their suitability should be established during equipment design or engineering review.

Q: Can weld-on lifting attachments be used with chain slings and wire rope slings?

A: Compatibility depends on the attachment's geometry and the sling's connecting component. Check the available opening, contact dimensions and permitted loading direction to ensure the sling connector fits correctly without interfering with the attachment.

Q: What is the difference between a weld-on lifting lug and a lifting padeye?

A: The terms are sometimes used interchangeably in industrial lifting. However, product geometry, hole dimensions, plate thickness and design requirements can vary. Buyers should compare the actual drawing and rated capacity rather than relying on the product name alone.

Q: Can an existing weld-on lifting lug be replaced with a different model?

A: Not solely because the replacement has the same WLL. The mounting footprint, hole dimensions, plate geometry, material compatibility and weld design may differ. Review the existing installation and the proposed replacement before approving the change.

Q: Do weld-on lifting points require periodic inspection?

A: Inspection requirements depend on the applicable regulations, lifting equipment standards, operating conditions and site procedures. Inspection may need to consider deformation, cracks, corrosion, damage to the attachment and the condition of the surrounding weld and supporting structure.

Q: Can weld-on lifting attachments be used for side loading?

A: Side loading should not be assumed permissible. The allowable loading direction and capacity depend on the specific product design and its documented ratings. Confirm the manufacturer's instructions and applicable engineering requirements before using an attachment outside its intended loading direction.

Q: What information should be checked before approving a weld-on lifting attachment for a project?

A: Review the product identification, rated capacity, applicable technical documentation, material requirements, installation drawing and any required test or inspection records. The approval process should also account for the supporting structure and the completed welded connection.
