Industrial Lifting Points for Machinery, Molds and Heavy Loads
RUBY supplies industrial lifting points for machinery, molds, dies and fabricated components across a range of industrial lifting applications. The product range includes swivel lifting points, fixed eye bolts and eye nuts, Grade 80 key eye points, and weld-on lifting attachments to suit different mounting arrangements and rigging requirements.
For equipment manufacturers, distributors and industrial project buyers, selecting the right lifting point starts with the required working load limit (WLL), mounting interface and lifting direction. RUBY’s product range helps buyers compare connection designs and identify suitable options for equipment installation, mold handling, maintenance and material handling.
-
![G80 Swivel Hoist Ring Side Loading Lifting Point]()

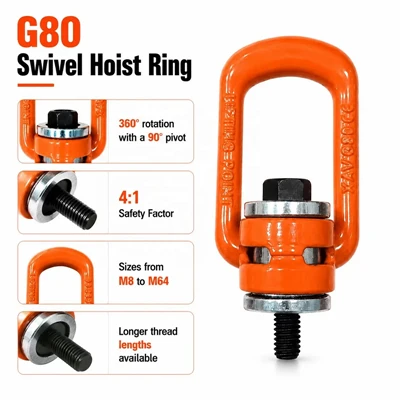

G80 Swivel Hoist Ring Side Loading Lifting PointThe G80 Swivel Hoist Ring Side Loading Lifting Point is a threaded lifting attachment for loads that require angular or lateral lifting. Its 360° rotating body and pivoting load ring allow the sling connection to align with the lifting...view more -
![G80 Swivel Hoist Ring Eye Bolt]()
G80 Swivel Hoist Ring Eye BoltThe G80 Swivel Hoist Ring Eye Bolt is a threaded lifting point for machinery, molds and heavy equipment. Its ball-bearing swivel body rotates 360°, while the bail pivots 180° to follow changing sling directions. Unlike a fixed eye bolt,...view more -
![G80 Universal Swivel Hoist Ring]()
G80 Universal Swivel Hoist RingThe G80 Universal Swivel Hoist Ring is a threaded lifting point for securing slings to machinery, molds and heavy equipment. Its rotating and pivoting bail accommodates changing sling directions, making it suitable for lifting...view more -
![Weld-on Lifting D Ring]()
Weld-on Lifting D RingThe Grade 80 Weld-on Lifting D Ring is a weldable lifting point designed to provide a fixed attachment location on suitable steel structures and equipment. Its forged D-ring and flat base plate allow the assembly to be welded onto a...view more -
![Grade 80 High Tensile Eye Nut]()
Grade 80 High Tensile Eye NutThe Grade 80 High Tensile Eye Nut is a threaded lifting component designed to create a lifting attachment point on compatible machinery, fixtures and industrial equipment. Its forged eye and internally threaded base connect to a...view more -
![G80 Lifting Eye Bolt]()
G80 Lifting Eye BoltThe G80 Lifting Eye Bolt (RP005) is a fixed threaded lifting point for connecting slings to machinery, molds, fixtures and other equipment. Manufactured as a Grade 80 lifting component, it provides a bolted attachment point for lifting...view more -
![Grade 80 Key Eye Point]()
Grade 80 Key Eye PointThe Grade 80 Key Eye Point (RP004) is a threaded lifting point with a 360° rotating eye and an integrated locking key for installation and removal. Unlike a conventional fixed DIN 580 eye bolt, its rotating eye can align with the...view more -
![Grade 80 Swivel Rotating Eye Bolt with Ring]()
Grade 80 Swivel Rotating Eye Bolt with RingThe Grade 80 Swivel Rotating Eye Bolt with Ring is a threaded lifting point designed to connect lifting slings to machinery, molds and heavy equipment. Its rotating ring and pivoting design accommodate different sling approach angles,...view more -
![Grade 80 Swivel Hoist Ring]()
Grade 80 Swivel Hoist RingThe Grade 80 Swivel Hoist Ring is a threaded lifting point for securing lifting equipment to machinery, molds and structural components. Its 360° swivel and 90° pivot allow the ring to align with the lifting direction, while the...view more -
![Grade 80 Lifting Point Weld On D Ring]()
Grade 80 Lifting Point Weld On D RingThe Grade 80 Lifting Point Weld On D Ring is a weldable lifting attachment for installing a dedicated lifting point on flat steel surfaces and beam structures. The RP008 series offers rated capacities from 1.12 to 15 tonnes, with a...view more -
![Grade 80 Lifting Eye Nut]()
Grade 80 Lifting Eye NutThe Grade 80 Lifting Eye Nut is an internally threaded lifting component for attaching compatible hooks, ropes or chains to a suitable mounting point. The RP005 series is designed for industrial lifting applications requiring a fixed...view more -
![Grade 80 Lifting Eye Bolt]()
Grade 80 Lifting Eye BoltThe Grade 80 Lifting Eye Bolt is a high-tensile alloy steel lifting attachment for connecting slings, chains or hooks to threaded lifting points. The RP005 series provides model-specific working load limits for vertical and 90° side...view more
Lifting Point Categories
Swivel Lifting Points
For changing lifting directions: Swivel hoist rings and rotating eye bolts accommodate different sling approach angles within their rated limits.
Fixed Lifting Eye Bolts and Eye Nuts
For fixed mounting positions: Eye bolts fit compatible threaded holes, while eye nuts connect to matching externally threaded studs.
Grade 80 Key Eye Points
For keyed lifting connections: The rotating eye and integrated key provide a specific connection design for compatible mounting arrangements.
Weld-On Lifting Points
For permanent welded connections: Suitable models provide lifting attachment points on steel structures, machine frames and fabricated assemblies.
Compare Lifting Point Categories
|
Category |
Connection Type |
Key Difference |
Best-Fit Requirement |
|
Swivel Lifting Points |
Threaded |
Rotating or pivoting eye |
Lifting direction may change |
|
Fixed Eye Bolts and Eye Nuts |
Threaded |
Non-swiveling eye |
Fixed lifting direction |
|
Grade 80 Key Eye Points |
Threaded |
Rotating eye with integrated key |
Keyed mounting design |
|
Weld-On Lifting Points |
Welded |
Permanent welded attachment |
Steel structures without a suitable threaded mounting point |
How to Select the Right Lifting Point
Required Capacity:
Match the lifting point's rated WLL to the load carried by each point in the actual lifting configuration.
Loading Direction:
Use the WLL specified for the intended loading angle and direction.
Installation Clearance:
Allow space for sling connection, eye movement and tool access during installation.
Mounting Strength:
The threaded connection, parent material or welded support must be suitable for the applied load.
Mold and Die Changes: Injection molds, die-casting molds and stamping dies.
Machine Tool Installation: CNC machining centers, milling machines and industrial lathes.
Fabricated Steel Assemblies: Welded machine frames, equipment bases and structural steel components.
Production Tooling: Assembly jigs, inspection fixtures and removable tooling.
Equipment Removal and Servicing: Pumps, motors and gearboxes with designated lifting points.
Production Line Installation: Machinery modules and heavy equipment assemblies.
Mounting Compatibility
Thread Sizes:
M6–M64 across selected threaded models.
Rated Capacity:
0.3–50 tonnes across the listed product range; capacity varies by model and loading direction.
Swivel Movement:
Selected models provide 360° rotation with pivoting ranges of 90°–180°.
Weld-On Capacity:
Selected models cover WLL ratings of 1–15 tonnes.
Thread and Dimensional Inspection:
Thread gauges and dimensional measuring tools check thread fit and critical dimensions.
Material and Hardness Verification:
Material certificates and hardness test reports document material and heat-treatment checks.
Proof Load Testing:
Applicable models are tested at the specified proof load, including 2.5× WLL where required by the product specification.
Magnetic Particle Testing:
MT inspection identifies surface-breaking defects on applicable forged components.
Inspection Records:
Relevant test reports and material documents can be supplied according to the product and order requirements.
OEM Lifting Point Options
|
OEM Item |
Customization Options |
|
Thread |
Metric thread size and pitch |
|
Dimensions |
Eye size, base dimensions and product length |
|
Surface Finish |
Powder coating, phosphating and other supported finishes |
|
Marking |
Customer logo, model number, WLL and batch identification |
|
Color |
Available standard or approved custom colors |
|
Packaging |
Individual bags, cartons and export pallets |
|
Labels |
Customer-specific product labels and barcodes |
Minimum Order: Reference MOQ of 50 pcs per model; sample orders from 1–5 pcs.
Production Lead Time: Approximately 15–25 working days for standard orders and 25–40 working days for OEM orders.
Export Packing: Cartons for standard shipments and pallets for bulk orders.
Shipping: Sea freight, air freight and express courier.
Shipping Documents: Commercial invoice and packing list; certificate of origin and product inspection documents where applicable.
Maintenance And Service Life
Thread Condition: Keep mounting threads clean and free of damage, galling and deformation.
Body and Eye Inspection: Check for cracks, bending, corrosion and visible wear before use.
Swivel Mechanism: Check for restricted rotation, jamming or abnormal looseness on swivel models.
Removal from Service: Replace lifting points with cracks, permanent deformation, damaged threads or abnormal movement. Follow the manufacturer's inspection intervals and service requirements.
Request a Quote
To receive an accurate quotation for industrial lifting points, please provide the following details:
Product Model: Lifting point type or model number.
Order Quantity: Required quantity for each model.
Thread Specification: Thread size and pitch for threaded models.
Required WLL: Working load limit per lifting point.
Application Details: Load type, lifting direction and mounting arrangement.
Delivery Destination: Country or destination port for shipping arrangements.
As one of the most professional lifting point manufacturers and suppliers in China, our products have good reputation in the market. Please feel free to wholesale durable lifting point made in China here from our factory. Also, custom service is available.
