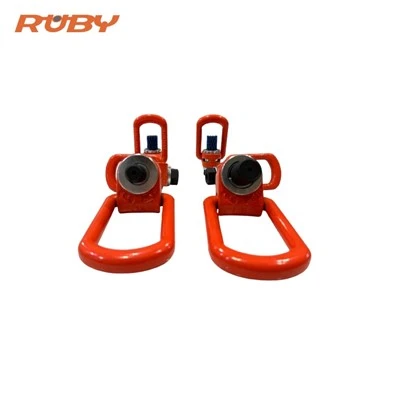

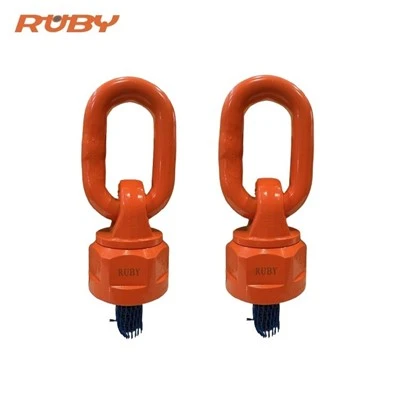

The G80 Swivel Hoist Ring Eye Bolt is a threaded lifting point for machinery, molds and heavy equipment. Its ball-bearing swivel body rotates 360°, while the bail pivots 180° to follow changing sling directions. Unlike a fixed eye bolt, it accommodates angled lifting configurations when the selected model and loading conditions permit.
Key Specifications
|
Parameter |
Specification |
|
Product Series |
RP003 |
|
Material Grade |
Grade 80 |
|
Working Load Limit (WLL) |
0.4–20 tonnes |
|
Thread Range |
M8–M56 |
|
Rotation |
360° |
|
Bail Pivot |
180° |
|
Design Factor |
4:1 |
|
Surface Finish |
Orange powder coating |
|
Thread Protection |
PE mesh sleeve |
Model Selection Table
|
Model |
WLL (t) |
Thread |
Thread Length E (mm) |
Pitch (mm) |
Torque (Nm) |
Weight (kg) |
|
RP003-M8 |
0.4 |
M8 |
12 |
1.25 |
40 |
0.44 |
|
RP003-M10 |
0.6 |
M10 |
19 |
1.5 |
40 |
0.45 |
|
RP003-M12 |
0.7 |
M12 |
19 |
1.75 |
40 |
0.45 |
|
RP003-M14 |
1.25 |
M14 |
31.8 |
2.0 |
100 |
0.45 |
|
RP003-M16 |
1.5 |
M16 |
31.8 |
2.0 |
130 |
0.48 |
|
RP003-M18 |
1.9 |
M18 |
30 |
2.5 |
170 |
1.35 |
|
RP003-M20 |
2.0 |
M20 |
30 |
2.5 |
170 |
1.4 |
|
RP003-M22 |
2.0 |
M22 |
30 |
2.5 |
170 |
1.4 |
|
RP003-M24 |
3.15 |
M24 |
30 |
3.0 |
280 |
1.4 |
|
RP003-M27 |
4.0 |
M27 |
38.1 |
3.0 |
500 |
2.35 |
|
RP003-M30 |
5.0 |
M30 |
35 |
3.5 |
600 |
2.5 |
|
RP003-M33 |
7.5 |
M33 |
50 |
3.5 |
600 |
3.8 |
|
RP003-M36 |
10 |
M36 |
54 |
4.0 |
600 |
3.9 |
|
RP003-M39 |
10 |
M39 |
58 |
4.0 |
800 |
4.0 |
|
RP003-M42 |
13 |
M42 |
63 |
4.5 |
800 |
5.9 |
|
RP003-M45 |
13 |
M45 |
68 |
4.5 |
800 |
6.0 |
|
RP003-M48 |
14 |
M48 |
68 |
5.0 |
800 |
6.15 |
|
RP003-M56 |
20 |
M56 |
84 |
5.5 |
900 |
10.0 |
Use the model-specific load chart to confirm WLL for the actual lifting direction and configuration.
Product Performance
Flexible Sling Alignment: 360° body rotation and 180° bail pivot let the lifting point follow changing sling directions.
High Load Capacity: WLLs from 0.4 to 20 tonnes cover different equipment lifting needs.
Easy Visual Identification: Orange powder coating improves visibility and provides surface protection.
Product Design & Identification
Ball-Bearing Swivel: The internal bearing arrangement enables rotational movement as the lifting direction changes.
Protective Thread Sleeve: The PE mesh sleeve helps prevent thread and surface scratches during transport. Remove it before installation.
Load Direction Reference: Use the product's applicable load chart to identify the rated capacity for the intended lifting arrangement; do not assume the maximum WLL applies in every direction.
Mounting Compatibility
Metric Thread Options: M8–M56 models are available with specified thread pitches from 1.25 to 5.5 mm. Match the exact thread size and pitch to the mounting hole.
Thread Engagement: Listed thread lengths range from 12 to 84 mm. Confirm the available mounting depth and required engagement for the selected model.
Installation Torque: Model-specific torque values range from 40 to 900 Nm. Apply the value listed for the selected model.
Movement Clearance: Allow sufficient space for the bail to pivot and the body to rotate without interference from adjacent components.
Applications
Mold and Die Handling: Lifting molds during installation, removal and transfer.
Machine Building: Attaching slings to machinery frames, bases and assemblies.
Industrial Equipment Maintenance: Providing a lifting point for equipment removal and repositioning.
Pump and Valve Handling: Lifting compatible components where the mounting structure and rated capacity meet the lifting requirements.
OEM Service
Bolt Length and Thread: Non-standard bolt lengths and specified thread options can be discussed for project requirements.
Product Colour: Alternative colours can be requested.
Brand Marking and Packaging: Confirm logo, labelling and packaging requirements when requesting a quotation.
Supply Information
MOQ: 1 piece for standard models.
Lead Time: 3–7 days for in-stock items; 15–25 days for customized orders.
Packaging: Individual PE sleeve, export carton and pallet packing.
Warranty: 12 months.
FAQ
Q: What Does the 4:1 Design Factor Mean for a G80 Swivel Hoist Ring?
A: A 4:1 design factor expresses the relationship between the product's design strength and its rated working load. It does not mean the WLL can be increased to four times its rated value.
Q: How Should Swivel Hoist Rings Be Specified for Multi-Point Lifting?
A: Specify the load at each lifting point based on the lifting arrangement, sling angles, load distribution and applicable design requirements. Do not divide the total load equally by the number of lifting points unless the load distribution justifies that assumption.
Q: Does the Mounting Bolt Alone Determine Lifting Capacity?
A: No. The supporting structure, threaded connection, material strength and load transfer path must also be suitable for the intended lifting load. The assembly capacity depends on the suitability of the complete connection.
Q: Which Quality Documents Should Be Compared When Sourcing Hoist Rings?
A: Compare the available material certificates, load-test or proof-test records, inspection reports and product traceability information. Confirm that the documents apply to the offered model and order.
Q: How Can Buyers Compare Swivel Hoist Rings from Different Suppliers?
A: Compare rated capacity by loading direction, thread and mounting dimensions, design factor, applicable standards, test documentation and product identification. A similar appearance or thread size does not establish equivalent performance.
Q: Can Replacement Parts Be Ordered for an Existing Swivel Hoist Ring?
A: Ask the supplier whether replacement parts are available for the exact model and production version. Confirm part compatibility before ordering; components from different models should not be assumed interchangeable.
