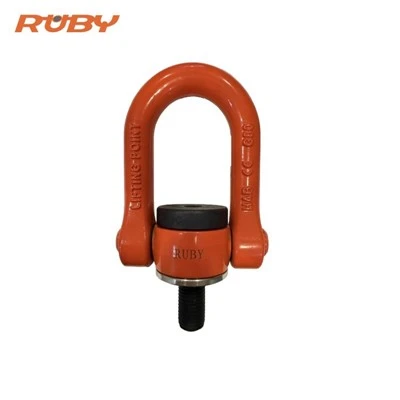

The G80 Universal Swivel Hoist Ring is a threaded lifting point for securing slings to machinery, molds and heavy equipment. Its rotating and pivoting bail accommodates changing sling directions, making it suitable for lifting applications where a fixed eye bolt may restrict sling alignment.
| Product code | WLL | METRIC THREAD | DIMENSIONS | TORQUE | N.W. | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | L | PITCH | A | B | C | D | F | G | H | S | ||||
| T | mm | mm | mm | mm | Nm | kg | ||||||||
| RP002-M16 | 2.0 | 16 | 24 | 2 | 50 | 37 | 76 | 14 | 101 | 49 | 38 | 8 | 130 | 0.8 |
| RP002-M18 | 2.5 | 18 | 40 | 2.5 | 74 | 54 | 105 | 20 | 145 | 77 | 48 | 12 | 170 | 1.9 |
| RP002-M20 | 3.0 | 20 | 40 | 2.5 | 74 | 54 | 105 | 20 | 145 | 77 | 48 | 12 | 170 | 2 |
| RP002-M22 | 3.0 | 22 | 40 | 2.5 | 74 | 54 | 105 | 20 | 145 | 77 | 48 | 12 | 170 | 2.1 |
| RP002-M24 | 4.5 | 24 | 40 | 3 | 74 | 54 | 105 | 20 | 145 | 77 | 48 | 12 | 280 | 2.5 |
| RP002-M27 | 5.0 | 27 | 40 | 3 | 98 | 73 | 146 | 30 | 201 | 103 | 68 | 17 | 500 | 5.5 |
| RP002-M30 | 7.3 | 30 | 45 | 3.5 | 98 | 73 | 146 | 30 | 201 | 103 | 68 | 17 | 600 | 5.5 |
| RP002-M33 | 8.0 | 36 | 50 | 3.5 | 98 | 73 | 146 | 30 | 201 | 103 | 68 | 17 | 600 | 5.5 |
| RP002-M36 | 10 | 36 | 54 | 4 | 98 | 73 | 146 | 30 | 201 | 103 | 68 | 17 | 600 | 5.5 |
Product Performance
Flexible Load Alignment: The 360° rotating body and 180° pivoting bail allow the ring to turn and tilt with the sling direction, helping accommodate changing lifting angles.
High Load Capacity: Grade 80 alloy steel construction provides a WLL range of 2–10 tonnes across the RP002 series, offering rated capacity options for different lifting loads.
Secure Threaded Mounting: The threaded bolt and specified tightening torque secure the ring to a compatible mounting point, helping maintain a stable connection during lifting.
Mounting Compatibility
Thread Sizes: RP002 models cover M16, M18, M20, M22, M24, M27, M30 and M36 threaded connections. Thread pitch ranges from 2.0 to 4.0 mm across the listed models.
Thread Length: Available bolt thread lengths range from 24 mm to 54 mm, depending on model, for mounting points with different engagement depths.
Installation Clearance: The swivel ring rotates 360° and pivots 180°. Allow sufficient space around the ring and bail for full movement without interference from nearby equipment or fixtures.
Tightening Torque: Specified torque ranges from 130 Nm to 600 Nm across the listed models. The required value depends on the selected model.
Applications
Mold & Die Handling: Attaching lifting slings to molds during removal, installation and transfer.
Machine Building: Lifting machine bases, assemblies and heavy components during production or maintenance.
Pump & Valve Handling: Providing a lifting attachment point for compatible equipment housings and industrial components.
Industrial Equipment Maintenance: Allowing the bail to align with the sling direction when lifting equipment from an approved mounting point.
Inspection & Maintenance
Before Each Use: Inspect the ring, bolt and swivel joint for cracks, deformation, wear or other damage. Do not use if defects are found.
Movement Check: Confirm the ring rotates 360° and pivots 180° without jamming or obstruction.
Thread and Fastener Check: Check the mounting thread and bolt for damage and confirm the connection is secure before lifting.
After Overload or Impact: Stop using the lifting point and have it assessed by a qualified person before returning it to service.
Cleaning and Lubrication: Remove dirt from moving parts and lubricate the swivel joint as specified in the product maintenance instructions.
OEM Service
Product Colour: Custom colour options.
Bolt Length: Custom bolt length and thread specifications.
Logo Marking: Customer logo and product identification marking.
Packaging: Customized packaging and labeling.
Supply Information
Minimum Order Quantity: 1 piece for standard models, subject to stock availability.
Lead Time: 3–7 days for standard models in stock; 15–25 days for customized orders.
Packaging: Individual protective packaging with outer cartons. Palletized packing can be arranged for bulk shipments.
Warranty: One-year warranty under proper installation and normal operating conditions, subject to the stated warranty terms.
Bulk Orders: Confirm model quantities, delivery schedule, packaging requirements and shipping terms before order placement.
FAQ
Q: Can a G80 swivel hoist ring be side-loaded?
A: The pivoting bail accommodates changes in sling direction, but this does not mean the ring can carry its full rated load in every direction. Confirm the permitted loading directions and applicable WLL for the specific model before use.
Q: Can swivel hoist rings be used in multi-point lifting systems?
A: Yes, when the selected lifting points and the complete rigging arrangement are suitable for the load. Load distribution depends on the center of gravity, sling geometry and lifting-point positions. The WLL of individual rings should not be added together without accounting for these factors.
Q: Are swivel hoist rings suitable for shock loading?
A: Do not subject a swivel hoist ring to sudden impact, snatch loading or uncontrolled load transfer. These conditions can create forces beyond the expected static lifting load. The lifting plan should account for foreseeable dynamic effects.
Q: Can G80 swivel hoist rings be used in outdoor or corrosive environments?
A: Suitability depends on the surface finish, exposure conditions and the manufacturer's specified environmental limits. For marine, chemical or persistently wet environments, confirm corrosion resistance and any additional protection requirements before ordering.
Q: Can swivel hoist rings be used with chain slings, wire rope slings and webbing slings?
A: They may be used with compatible sling types when the connector geometry, contact area and lifting configuration are appropriate. Check that the sling connector seats correctly in the bail and that the assembly remains within its applicable rated limits.
Q: What should be confirmed before approving a swivel hoist ring for a lifting project?
A: Confirm the required WLL, model identification, installation interface, permitted loading directions and applicable project standards. Where required, obtain the relevant product drawings, inspection records and material or test documentation for engineering review.
Q: Can the same swivel hoist ring model be used for repeat equipment orders?
A: Yes, provided the original model remains suitable for the equipment and lifting arrangement. For repeat procurement, retain the model number, thread specification, rated capacity and approved product documentation to reduce the risk of ordering an incompatible replacement.
