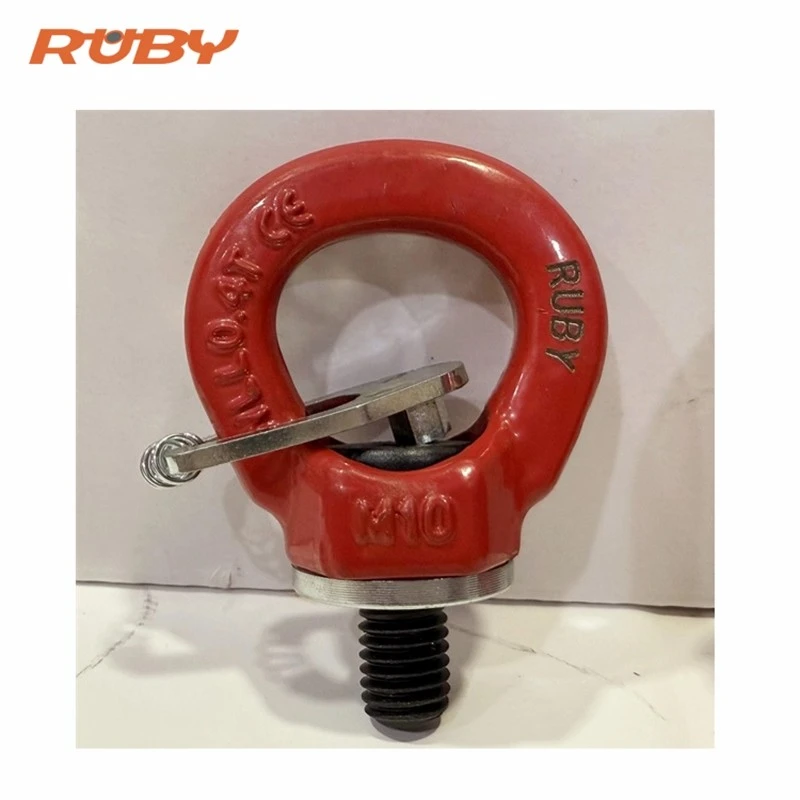

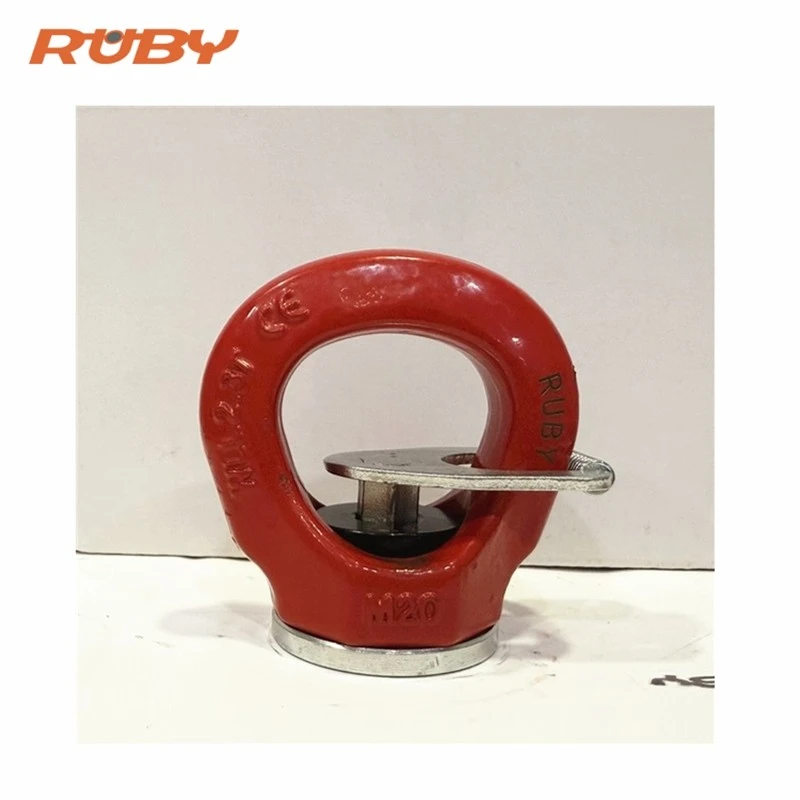

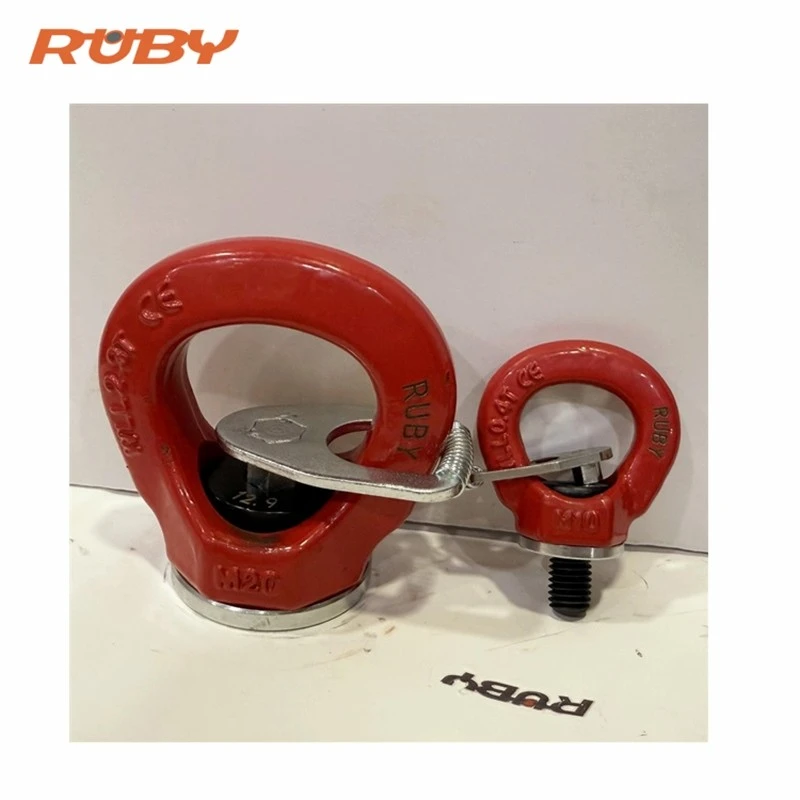

RUBY Anchor Point is a swivel lifting point for machinery and heavy components where the lifting direction can change during handling. The RP004 series combines a forged swivel eye with a bolt and washer assembly, allowing the lifting eye to rotate with the load direction while remaining secured to the equipment.
| Product code | WLL | THREAD | Dimensions | TORQUE | N.W. | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| T | M | E | PITCH | A | B | C | D | F | Nm | kg | |
| mm | mm | mm | |||||||||
| RP004-M8 | 0.3 | M8 | 11.5 | 1.25 | 38 | 26 | 45.3 | 25 | 8 | 10 | 0.11 |
| RP004-M10 | 0.4 | M10 | 14 | 1.5 | 38 | 26 | 45.3 | 25 | 8 | 10 | 0.12 |
| RP004-M12 | 0.75 | M12 | 17 | 1.75 | 43.5 | 32 | 54 | 33 | 10 | 15 | 0.2 |
| RP004-M16 | 1.5 | M16 | 24 | 2 | 52 | 37.5 | 63.5 | 36 | 14 | 30 | 0.35 |
| RP004-M20 | 2.3 | M20 | 30 | 2.5 | 63 | 44.5 | 78.5 | 47.5 | 20 | 70 | 0.66 |
| RP004-M24 | 3.2 | M24 | 35.3 | 3 | 74 | 51.5 | 92 | 53 | 20 | 150 | 1.1 |
| RP004-M30 | 4.5 | M30 | 45 | 3.5 | 92 | 65 | 118 | 68 | 24 | 250 | 2.07 |
| RP004-M36 | 7 | M36 | 56.8 | 4 | 105 | 76 | 136 | 82 | 30 | 400 | 4 |
| RP004-M42 | 9 | M42 | 66.5 | 4.5 | 121.5 | 88 | 160 | 92 | 35 | 550 | 5.52 |
| RP004-M48 | 12 | M48 | 75.5 | 5 | 138 | 100 | 180 | 110 | 42 | 550 | 8.86 |
360° Load Alignment
360° Rotation: The swivel eye rotates through 360° to follow the pulling direction during lifting.
Directional Flexibility: The rotating eye accommodates changing pull directions, unlike a fixed lifting point.
Higher WLL: The RP004 Key Eye Point offers up to 4.5 times the WLL of conventional DIN 580 lifting points, according to the product page.
Forged Swivel Eye
Forged Load-Bearing Eye: The forged eye forms the main load-bearing component and provides the rotating interface for lifting when pull directions change.
Repeated Handling: The robust construction suits machinery and heavy components that require repeated lifting with a swivel connection.
Installation Control
Hex Socket: The bolt's hex socket enables tightening with standard tools.

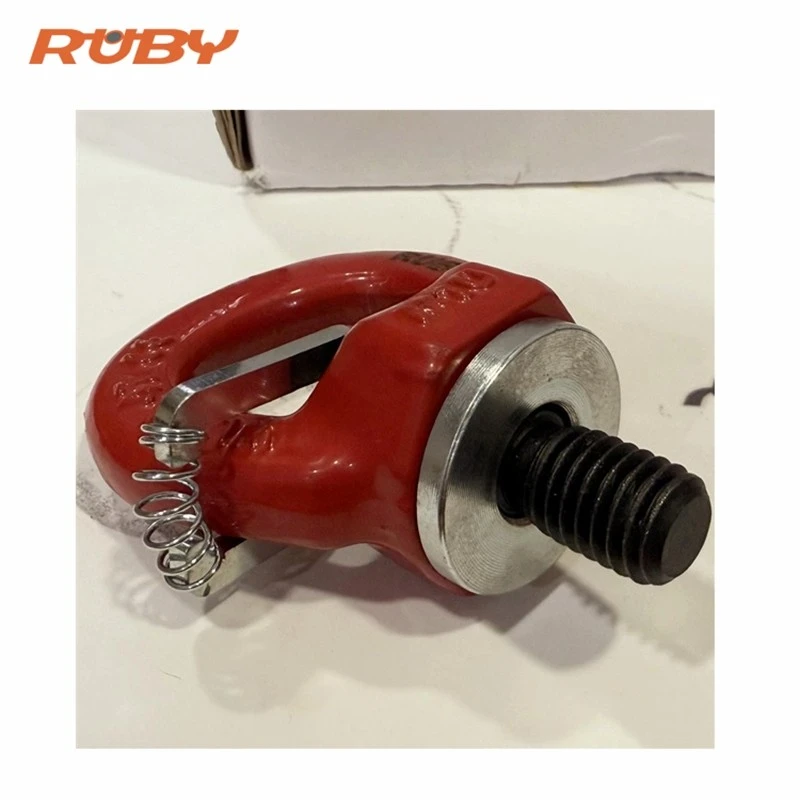

Quick Key: A supplementary Quick Key allows manual tightening for temporary setups.
Specified Torque: Each RP004 model has a specified installation torque ranging from 10 to 550 Nm.
Mounting Compatibility
Metric Threads: RP004 models cover M8–M48 threads, with model-specific pitches ranging from 1.25 to 5 mm.
Dimensional Fit: Dimensions A, B, C, D and F define the key measurements for checking mounting space and equipment compatibility.
Applications
Machine Tools: Provides a movable lifting point for machine installation, relocation and maintenance.
Molds & Dies: Supports lifting of heavy tooling where the pulling direction may change.
Motors & Gearboxes: Provides a lifting connection for installation and replacement work.
Fabricated Equipment: Suitable for machinery frames, bases and other heavy assemblies requiring a swivel lifting point.
Customization
Bolt Finish:
Black oxidation or galvanized surface finishes are available.

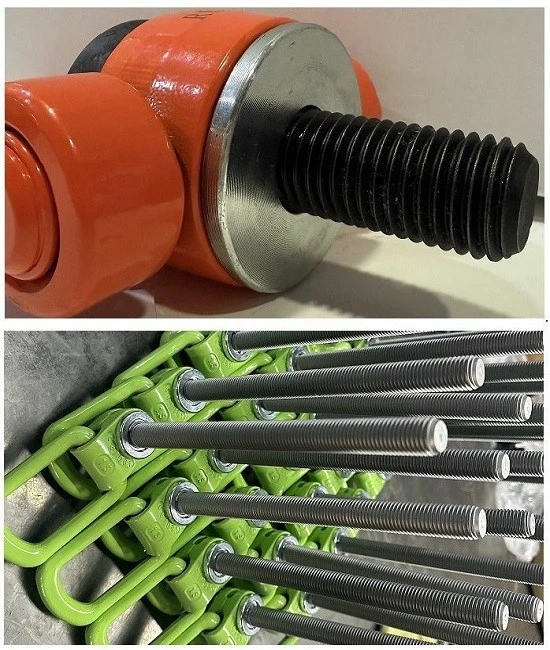

Bolt Length:
Different bolt lengths can be supplied for specified mounting requirements.

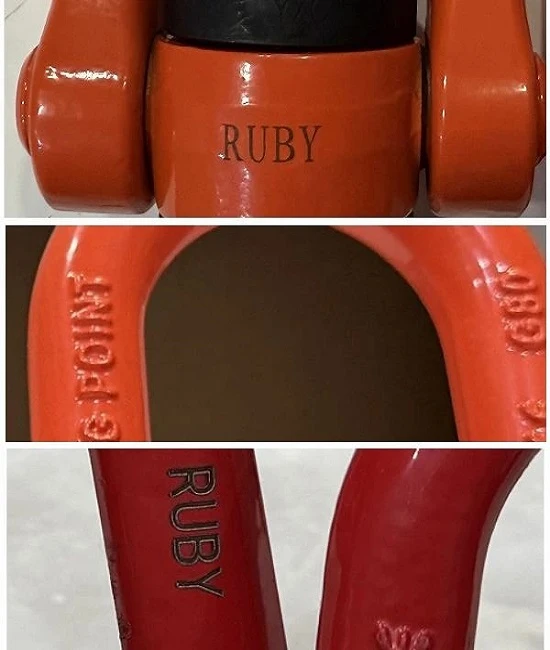

Product Marking:
Body stamping content and marking method can be customized.

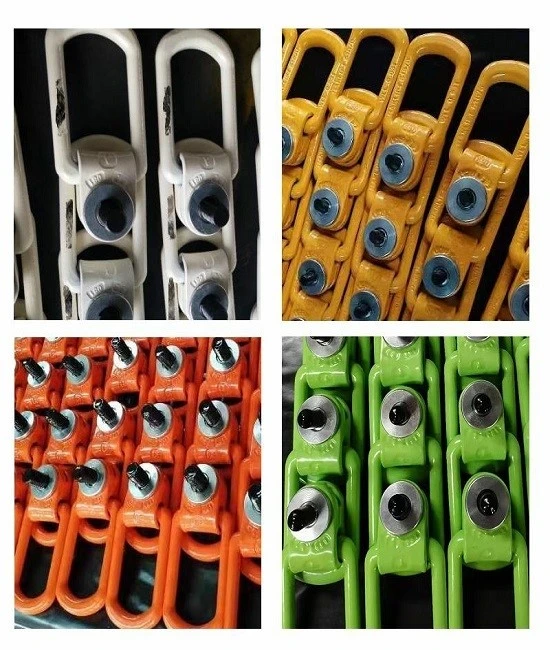

Body Color:
Different body colors are available for product identification.
Supply Capability
Product Range: RP004, M8–M48, WLL 0.3–12 tons.
MOQ: 100 pcs per size for regular orders.
Lead Time: 10–20 working days for standard models.
Mixed Orders: Multiple sizes and quantities can be combined in one order.
Custom Supply: Bolt length, surface finish, marking, body color and packaging can be specified per order.
Packaging: Individual plastic bags or cartons; customer logo, color and packaging design available.
Routine Maintenance
Thread Condition: Keep the mounting thread clean and check for visible thread damage.
Swivel Eye: Check that the eye rotates freely without visible deformation.
Bolt & Washer: Check the bolt and washer assembly for visible damage, deformation or looseness.
Tightening Torque: Use the specified model torque when installing or reinstalling the Anchor Point.
FAQ
Q: What is the difference between an Anchor Point and a standard lifting eye?
A: An Anchor Point uses a swivel eye that can rotate with the lifting direction, while a conventional fixed lifting eye does not provide the same directional movement. The RP004 series is designed for applications where the lifting direction can change during handling.
Q: Can the Anchor Point be supplied for a new equipment design?
A: Yes. The RP004 series can be considered when a threaded lifting point needs to be incorporated into new machinery or equipment. The required thread, dimensions and lifting load should be defined during equipment design.
Q: What information should I provide when requesting a quotation?
A: For an accurate quotation, provide the required model or thread size, quantity, required WLL, bolt length if customized, surface finish, marking requirements and packaging requirements.
Q: Can RUBY provide product drawings for engineering approval?
A: Technical drawings can be requested for dimensional confirmation before purchase. Buyers can use the drawing to verify the mounting interface and installation space against their equipment design.
Q: Can different RP004 sizes be included in the same purchase order?
A: Yes. Different RP004 sizes can be specified in one purchase order according to the quantities required for each equipment model or project.
Q: Can Anchor Points be purchased for distributor stock?
A: Yes. Standard RP004 models can be purchased for distributor inventory, allowing different sizes and WLL ratings to be stocked according to local market requirements.
